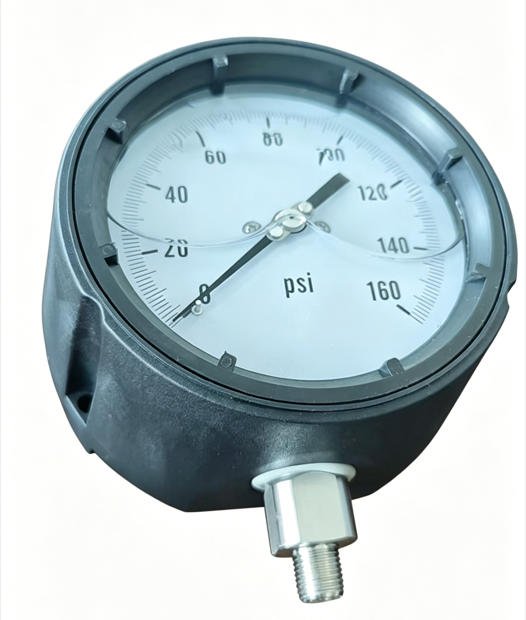

Phenolic Resin Industrial Instruments: JT-06

Application：Suitable for  high dynamic pressure fluctuations and vibrations working environments .

                     Suitable for corrosive environments or liquid media that will not cause blockages in the pressure system.

Suitable for : Chemical/Oil Industrial/Mining/ Marine engineering/Environmental technology/ mechanical engineering/plant construction .

Features :

Dial size: 115MM

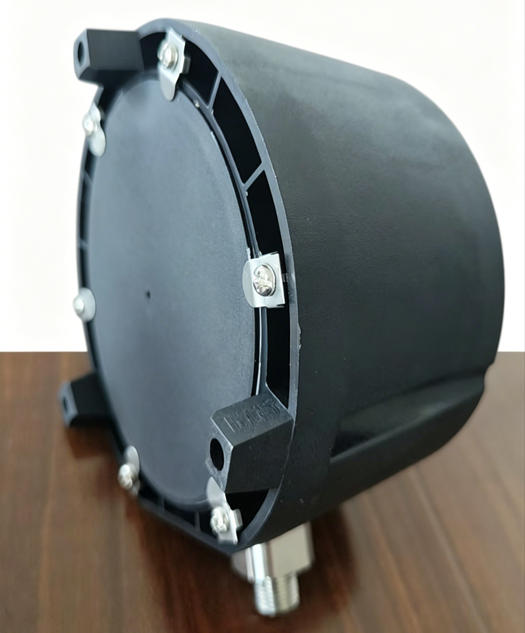

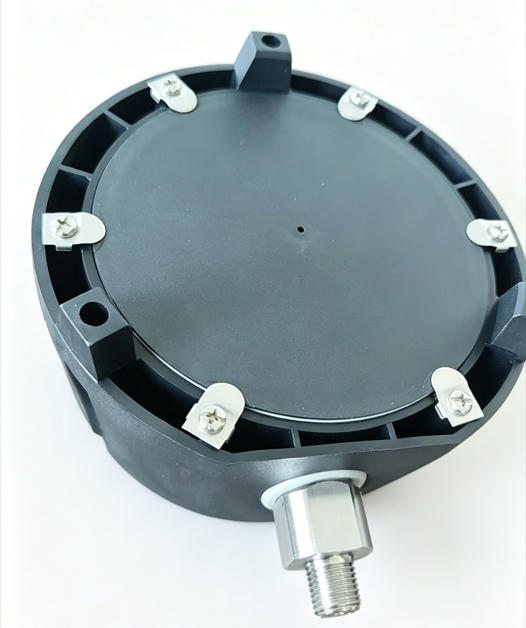

Case Material: Black Phenolic Resin , The front has a compartment, with a pressure relief valve on the back .

Safety Glasses Protector , Adjustable pointer , Oil filling or Without .

Bottom Connection Instrument , 1/2〃NPT , 316LL , customized

Bellows: 1~ 100~1000psi ~1500PSi  (316L （1000psi ）C-Types , Spiral bourdon tube )

movment: 304

Dial: Aluminium , white color , black letter ,Limited-stop pin .

Point: Adjustable Aluminium Materilas

Precision: ±1.0% .
