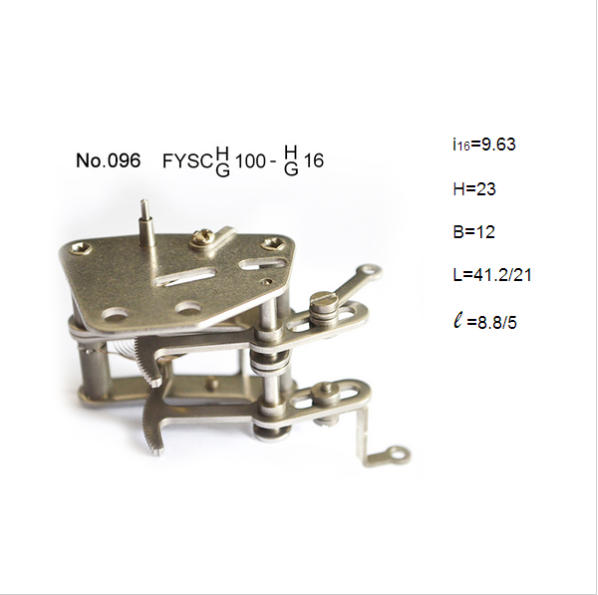

Customized Double movement for 100 mm pressure gauge

i16—Signify the transmission ratio of movement's shaft gear which is xx.

H—Signify the vertical dimension of reversed assembling movement's needle pivot to Mounting holes of attachment.

B—Signify the center distance of reversed assembling movement's two mounting holes.

L—Signify the length of needle pivot (which means shaft gear).

e—Signify the length of needle pivot over the splint

Product Name: Double Movement
Material: stainless steel 304 or brass
Transmission ratio: 9.63
Movement's shaft gear: 16
Color: Original color
Certificate: ISO9001; ISO14001
Used: 4 inch pressure gauge
