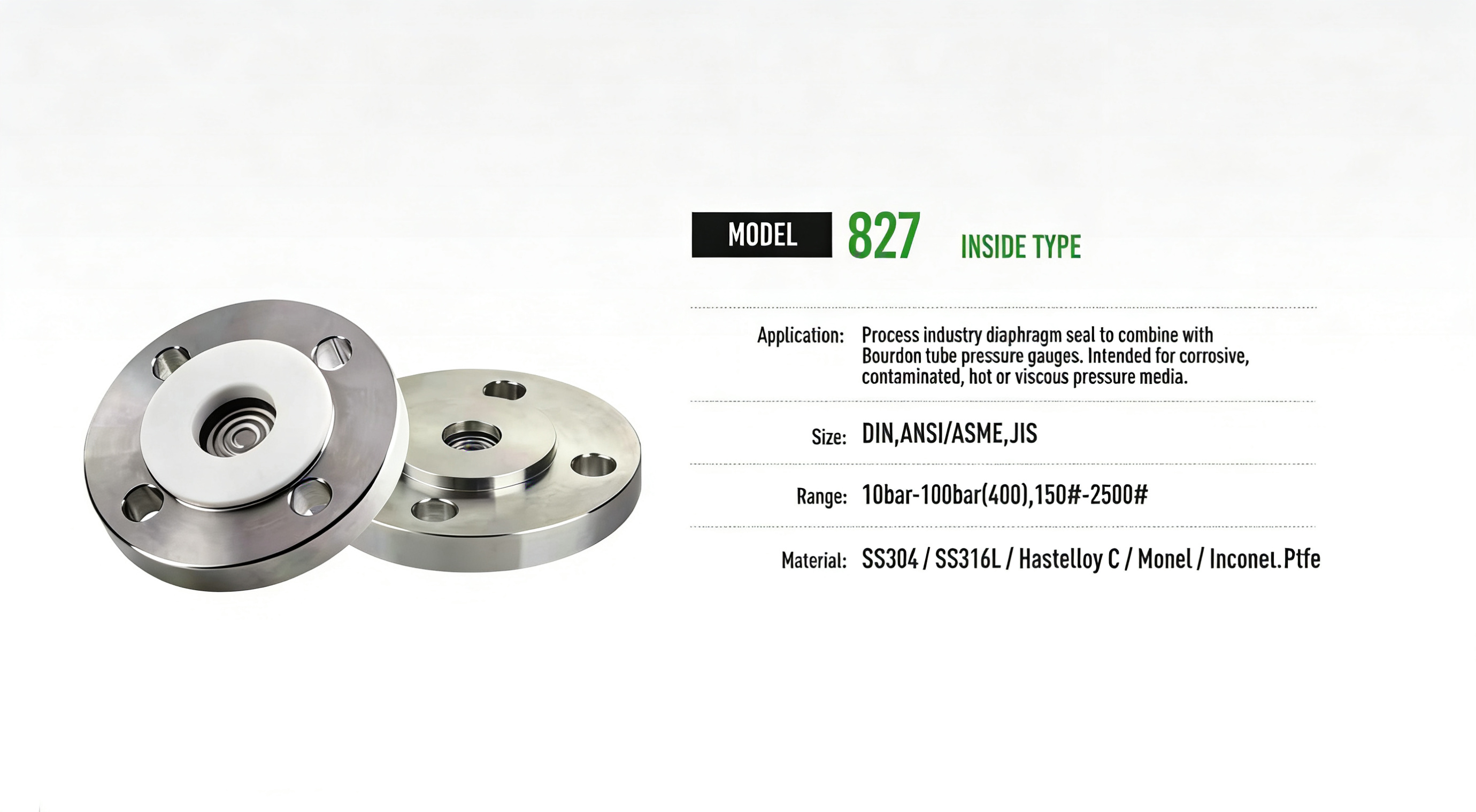

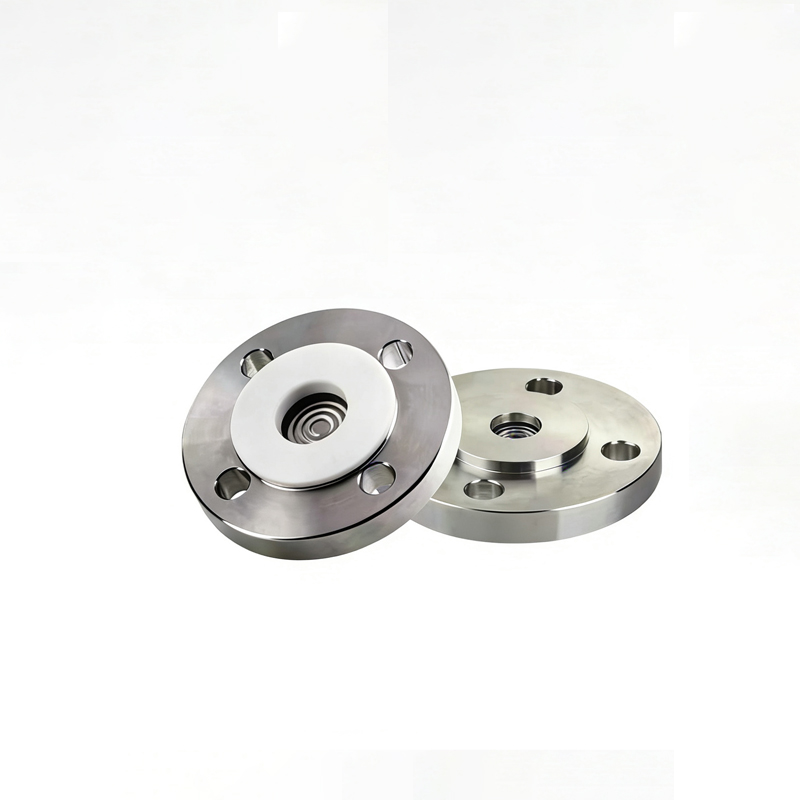

Application: Process industry diaphragm seal to combine with bourdon tube pressure gauges. Interded for corrosive, contaminated,

                     hot or viscous pressure media.

Housing body: SS316L

Process connection: 1/4" to 1" NPT(female), others see options

Instrument connection: copillary, 1/4" or 1/2" NPT(female)

Suitable pressure ranges: φdM=56, range: -0.1~0 / 0~4MPa
                                               φdM=36, range: 0~1.6 / 0~40MPa
                                              (Diaphragm diameter φdM)

Diaphram material: SS316L

Working temperature: -45~150℃

Filling liquid: silicone oil
