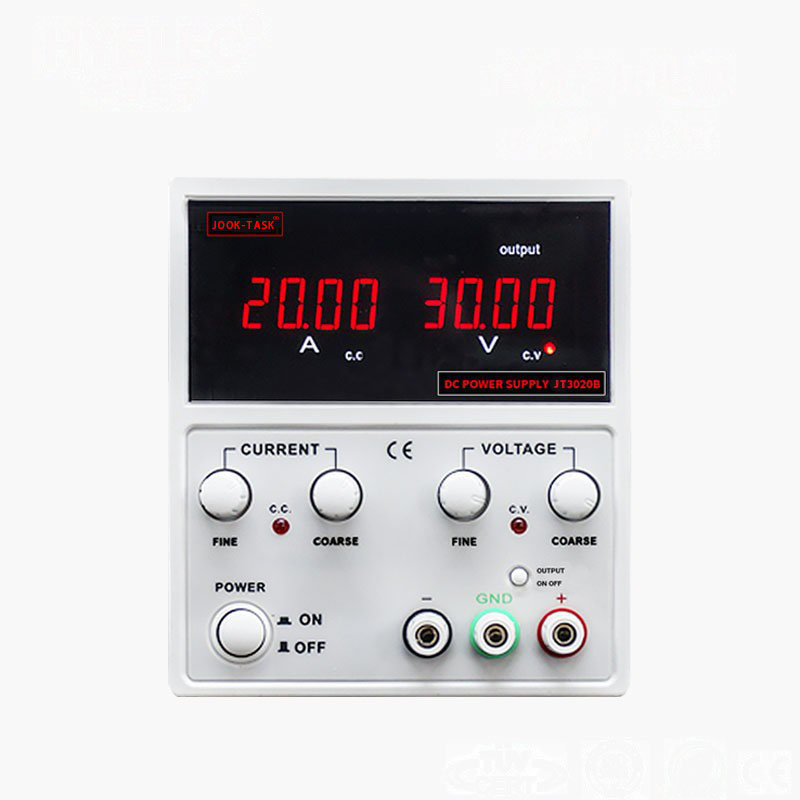

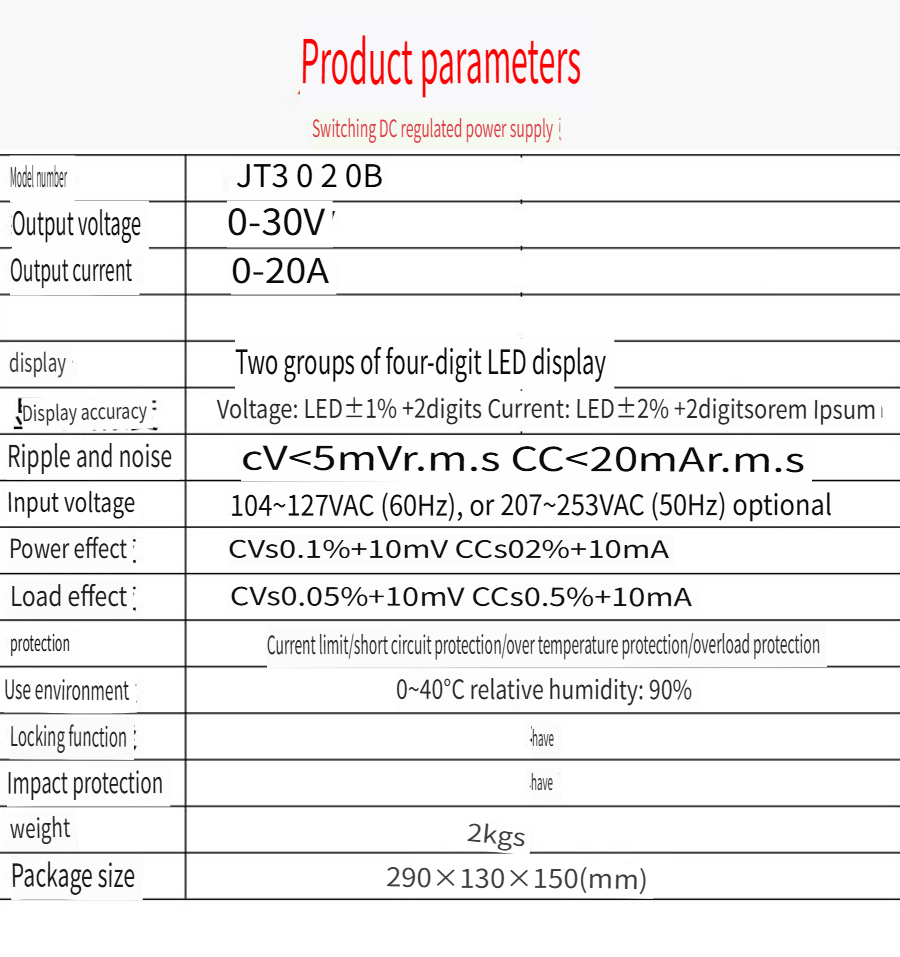

Product Paraments Of DC REGULATED POWER SUPPLY (30v 20A)

Model Number: JT3020B

Output Voltage: 0~30V

Output Current: 0~20A

Displaly : Two groups of 4 digit LED display

Display accuacy: Voltage : LED±1%  (2 digits )

Current accuacy: LED±2%  (2 digits )

Ripple and noise : cV〈5mVr .m.s  CC〈20mAr .m.s

Input voltage: 104~217VAC(60Hz) or 207~253VAC(50Hz) Optional .

Power effect: CVs0.1%+10mV          CCS ：0.2%+10mA

Load effect:  CVs0.05%+10mV          CCS ：0.5%+10mA

Protection : Current /Short circuit protection /over temperature protection/overload protection

Use environment : 0~40℃ , Humidity:90%

Locking function:  have

Impact protection: have

weight: 2KGS

Package size: 290*130*150mm
