Dial Size : 50mm, 63mm, 80mm, 100mm, 125mm, 150mm & 250mm Ranges : -1 to 0....0.6 to 2100 bar Wetted Parts : SS 316L & Monel Mounting : Bottom, Back and with mounting bracket accessories Accuracy : CL 0.5, CL 1.0 & CL 1.6 Dampening Liquid : Dry, Fillable & Filled Standard followed : EN837-1, ANSI B40.1, IS 3624 & other National / International Standards

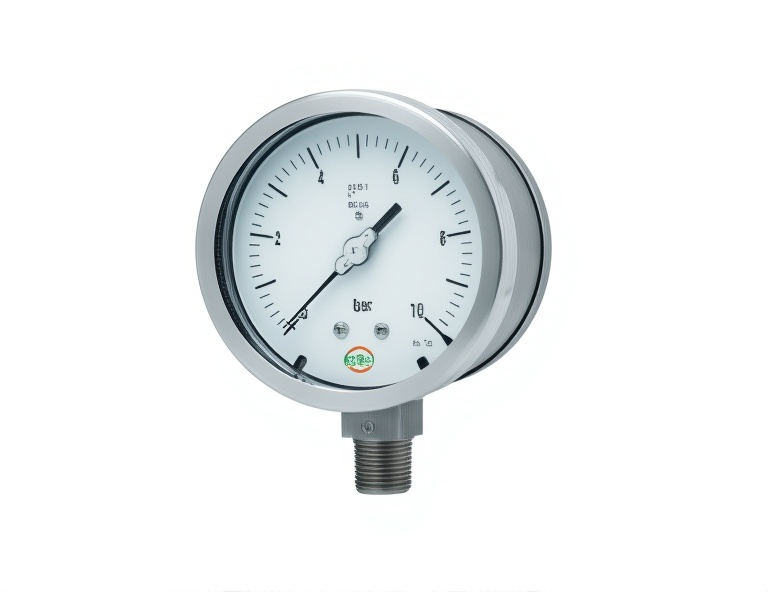

Standard Full SS Pressure Gauge

Dial Size : 50mm, 63mm, 80mm, 100mm, 125mm, 150mm & 250mm

Ranges : -1 to 0....0.6 to 2100 bar

Wetted Parts : SS 316L & Monel

Mounting : Bottom, Back and with mounting bracket accessories

Accuracy : CL 0.5, CL 1.0 & CL 1.6

Dampening Liquid : Dry, Fillable & Filled

Standard followed : EN837-1, ANSI B40.1, IS 3624 & other National / International Standards

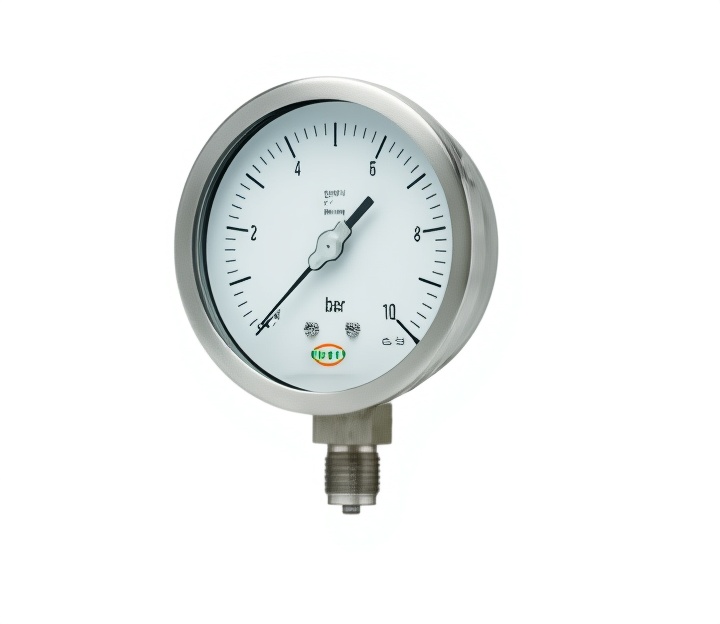

Solid Front Full SS Pressure Gauge

Dial Size : 63mm, 100mm & 150mm

Ranges : -1 to 0....0.6 to 2100 bar

Wetted Parts : SS 316L & Monel

Mounting : Bottom, Back and with mounting bracket accessories

Accuracy : CL 0.5, CL 1.0 & CL 1.6

Dampening Liquid : Dry, Fillable & Filled

Standard followed : EN837-1, ANSI B40.1, IS 3624 & other National / International Standards

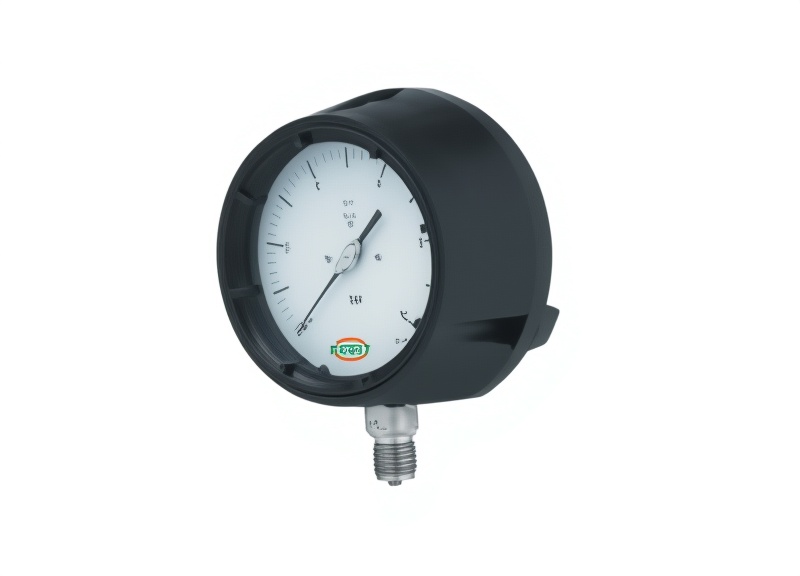

Phenol Case Solid Front Pressure Gauge

Dial Size : 4.5”

Ranges : -1 to 0....0.6 to 2100 bar

Wetted Parts : SS 316L & Monel

Mounting : Bottom, Back and with mounting bracket accessories

Stem Mounting :

Accuracy : CL 0.5

Dampening Liquid : Dry, Fillable & Filled

Standard followed : ANSI B40.1

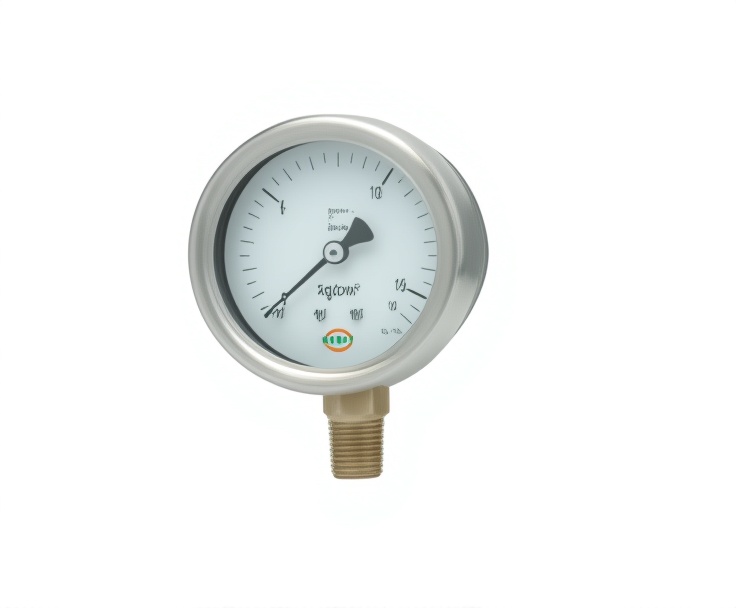

SS Case Brass Pressure Gauge

Dial Size : 40mm, 50mm, 63mm & 100mm

Ranges : -1 to 0....0.6 to 700 bar

Wetted Parts : Copper Alloy

Mounting : Bottom, Back and with mounting bracket accessories

Accuracy : CL1.6 & CL 2.5

Dampening Liquid : Dry, Fillable & Filled

Standard followed : EN837-1, ANSI B40.1, IS 3624 & other National / International Standards

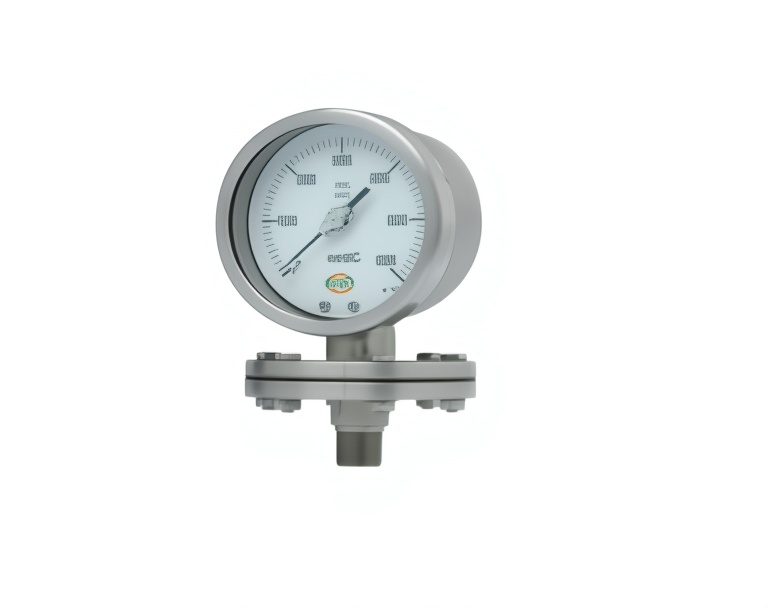

Low Pressure Diaphragm Pressure Gauge

Dial Size : 100mm & 150mm

Ranges : 1bar to 16bar & 0....250mmWC

Wetted Parts : SS 316, Monel & Hastelloy 'C-276'

Mounting : Bottom, Back and with mounting bracket accessories

Accuracy : CL 1.6

Standard followed : EN837-1, ANSI B40.1, IS 3624 & other National / International Standards

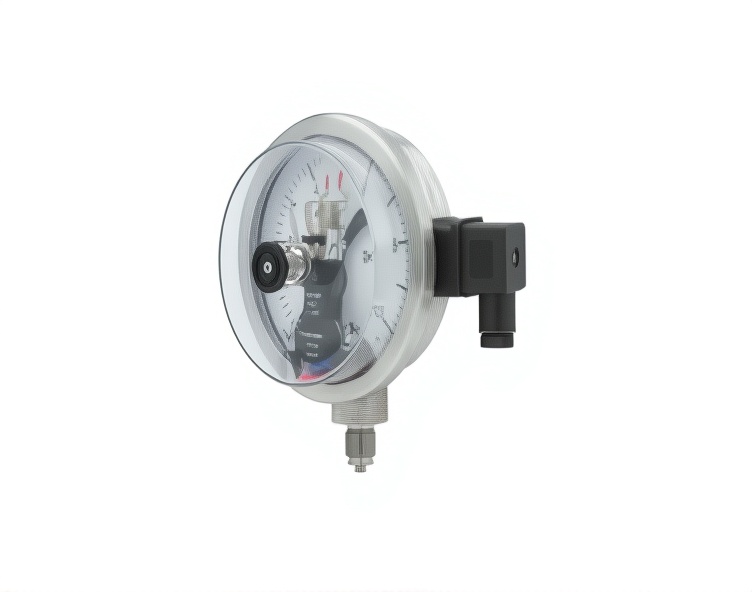

Electric Contact Standard Full SS Pressure Gauge

Dial Size : 100mm & 150mm

Ranges : -1 to 0....0.6 to 2100 bar

Wetted Parts : SS 316L & Monel

Mounting : Bottom, Back and with mounting bracket accessories

Accuracy : CL 0.5, CL 1.0 & CL 1.6

Dampening Liquid : Dry, Fillable & Filled

Standard followed : EN837-1, ANSI B40.1, IS 3624 & other National / International Standards

Contact Type : Magnetic Snap Action & ATEX Inductive Contact

No. of Contacts : Single, Double & Triple Contacts for ON / OFF action

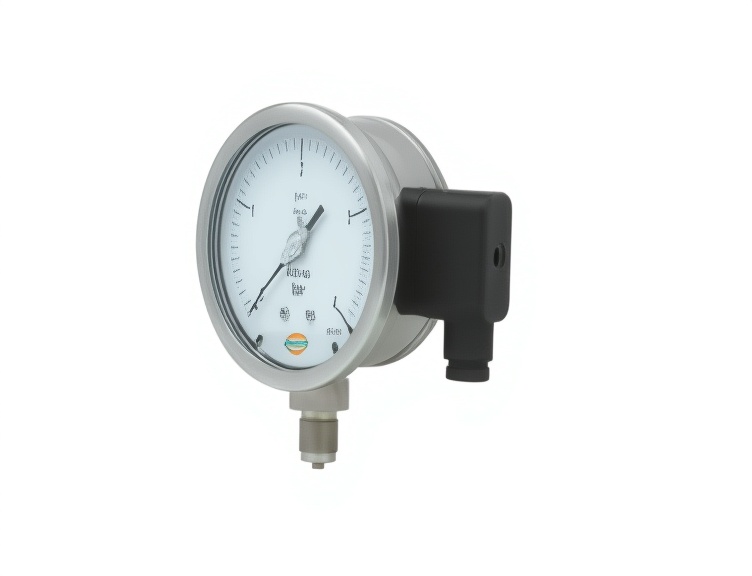

Transmitter Full SS Pressure Gauge

Dial Size : 100mm & 150mm

Ranges : -1 to 0....0.6 to 600 bar

Wetted Parts : SS 316L & Monel

Mounting : Bottom, Back and with mounting bracket accessories

Accuracy : CL 0.5 (Transmitter)

Transmitter : 2 Wire, 24V DC

Dampening Liquid : Dry, Fillable & Filled

Standard followed : EN837-1, ANSI B40.1, IS 3624 & other National / International Standards

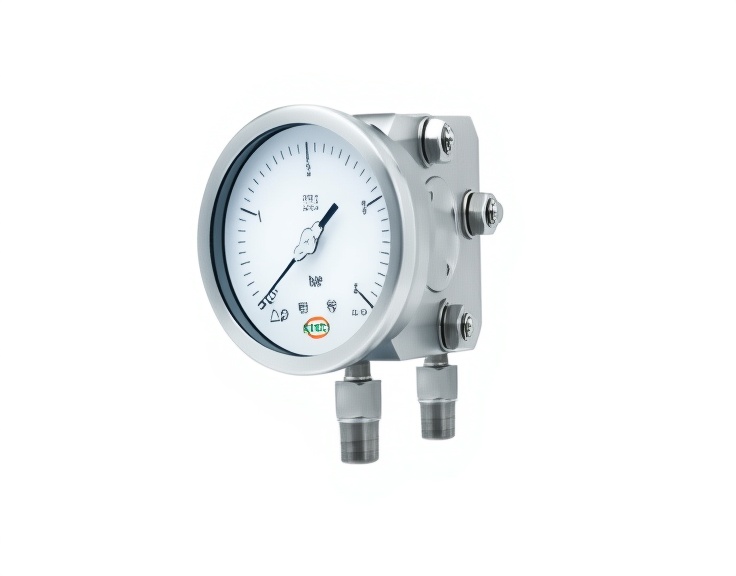

Differential Pressure Gauges - Single & Double Diaphragm

Type : Single & Double Diaphragm

Dial Size : 100mm & 150mm

Ranges : -6000mmWC to 0 250mmWC to 16bar

Static Pressure : 60 bar (Single Diaphragm) & 100bar (Double Diaphragm)

Wetted Parts : SS 316, Monel & Hastelloy 'C-276'

Mounting : Bottom, Back and with mounting bracket accessories

Accuracy : CL1.6 & CL 2.5

Standard followed : EN837-1, ANSI B40.1, IS 3624 S. other National / International Standards











Differential Pressure Gauges - Piston Operated

Dial Size : 63mm, 100mm & 150mm

Ranges : 25mbar to 4bar 200bar

Static Pressure : 200bar

Wetted Parts : SS 316

Mounting : Bottom, Back and with mounting bracket accessories

Accuracy : CL1.6 & CL 2.5
