Stainless steel bimetal thermometer
Stainless steel bimetal thermometer
Introduction :

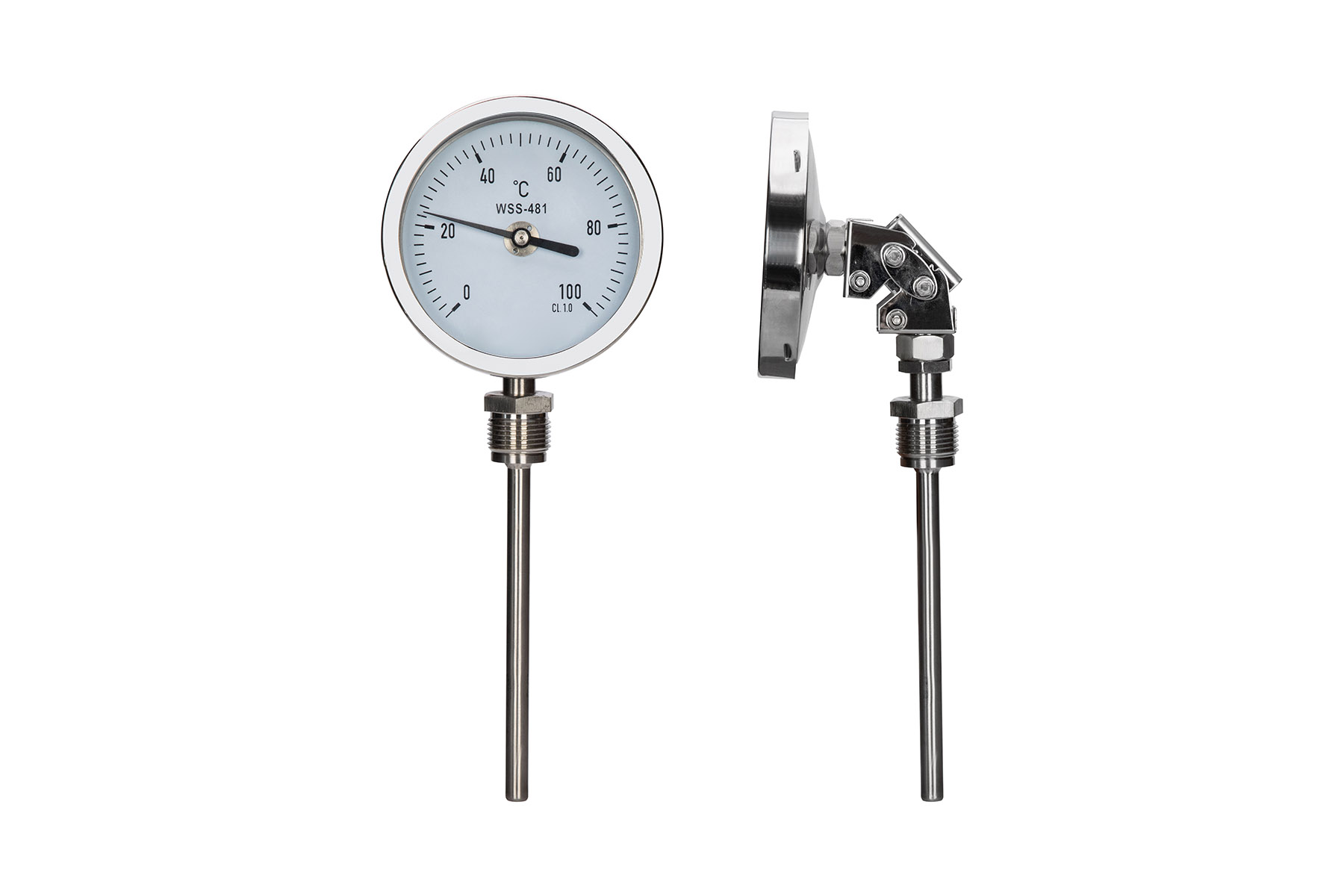

The Stainless Steel Bimetal Thermometer is a high-quality, durable, and accurate instrument used to measure temperatures in various industrial applications. It combines the ruggedness of stainless steel with the precision of a bimetallic sensing element. This thermometer is ideal for use in environments that require resistance to corrosion, high pressure, and extreme temperatures.
Types
· Bottom Connection: Mounted with a connection at the bottom of the thermometer, typically used for installations where space at the back is limited.
· Back Connection: Installed with the connection at the back of the thermometer, providing a more compact design for panel mounting.
· Adjustable Angle: Offers flexibility by allowing the angle of the dial to be adjusted for optimal readability, commonly used in installations with varying viewing angles.
· Remote: Features a long capillary tube, allowing the thermometer to be installed remotely from the measurement point. Ideal for high-temperature or hard-to-reach locations.
Specifications
Parameter | Details |
Dial Size | 40mm (1.57 inches), 50mm (1.97 inches), 63mm (2.48 inches), 75mm (2.95 inches), 100mm (3.94 inches), 150mm (5.91 inches), 200mm (7.87 inches), 250mm (9.84 inches), 300mm (11.81 inches) |
Pressure Range | 0-60 bar, 0-100 bar, 0-200 bar, custom ranges available |
Ring | Stainless Steel, robust design for long-lasting durability |
Lens | Glass or Acrylic, resistant to high temperatures and pressures |
Dial | Aluminum, with clear markings for easy reading |
Pointer | Aluminum, precision machined for accuracy |
Movement | High-precision bimetallic spring movement for smooth and accurate reading |
Tube & Socket | Stainless Steel, resistant to corrosion and high temperatures |
Accuracy | ±1% to ±2% of full scale |
Material | Stainless Steel, Bimetallic Alloy, Aluminum (Dial) |
Process Connection | Threaded (1/2 NPT, 3/4 NPT), Flanged (PN 16, PN 25), Custom connections available |
Process Temperature | -40°C to +500°C (-40°F to +932°F), depending on model and application |
Application Medium | Suitable for use with gases, steam, water, and other industrial fluids |
Applications
· Chemical Industry: Temperature measurement in reactors, pipelines, and storage tanks
· Food and Beverage: Used in the measurement of temperatures during cooking, storage, and transport
· Oil & Gas: Ideal for measuring temperature in pipelines, drilling operations, and refineries
· Pharmaceutical: Accurate temperature control in drug manufacturing processes
· HVAC: Monitoring air conditioning and refrigeration systems
· Power Plants: Monitoring equipment for power generation systems
Why Choose Our Stainless Steel Bimetal Thermometer?
· Durability: Made from high-quality stainless steel, ensuring long-lasting performance even in harsh environments
· Accuracy: Precise temperature readings with high accuracy (±1% to ±2%)
· Wide Range: Available in various dial sizes and pressure ranges to suit diverse industrial needs
· Corrosion Resistance: Ideal for use in corrosive environments such as chemicals, water, and steam
· Flexible Installation: Bottom connection, back connection, adjustable angle, and remote installation types to suit various applications
· Reliable: Designed to handle high pressures and extreme temperatures for continuous, accurate performance
Get in Touch
Please contact us for more information or to request a quote tailored to your specific requirements.
