All stainless steel diaphragm pressure gauge
Diaphragm Pressure Gauge
Introduction
The All Stainless Steel Diaphragm Pressure Gauge is designed to measure the pressure of gases or liquids that are corrosive, viscous, or crystallizable. With a robust all-stainless steel construction, this gauge ensures high durability and exceptional performance in harsh environments. The diaphragm design enables precise pressure measurement while preventing the medium from coming into direct contact with the internal mechanisms. It is ideal for applications requiring high reliability and resistance to corrosion.
Types
1. Bottom Mount Diaphragm Pressure Gauge
1. Features a bottom connection, suitable for standard applications.
2. Back Mount Diaphragm Pressure Gauge
1. Includes a back connection for panel mounting.

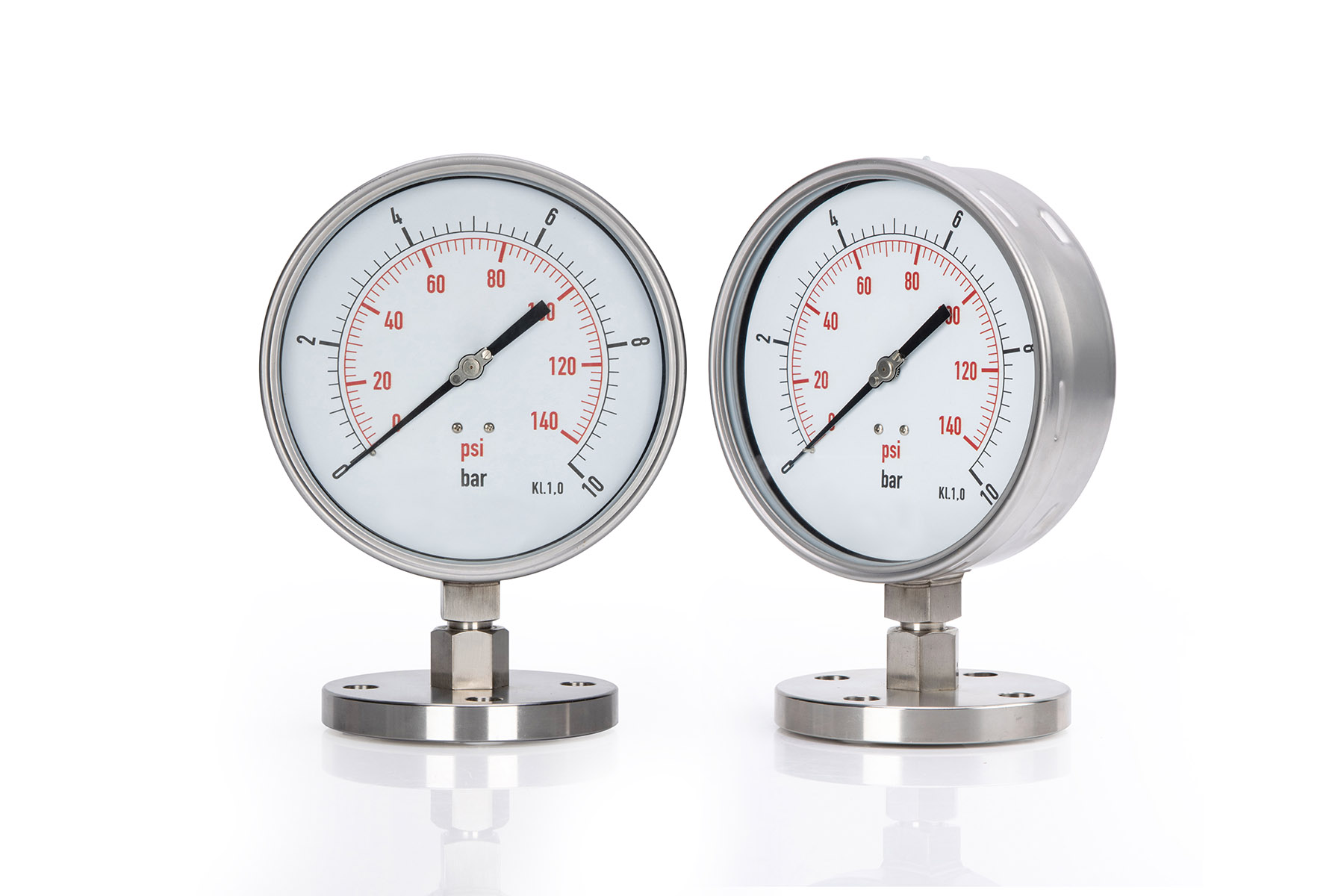

3. Flanged Diaphragm Pressure Gauge
1. Equipped with a flange for secure installation in pipelines.
4. Sanitary Diaphragm Pressure Gauge
1. Designed with a hygienic interface, ideal for food, beverage, and pharmaceutical industries.
Parameters
Parameter | Specification |
Dial Size | 1.5", 2", 2.5", 3", 4", 6" (40, 50, 63, 75/80, 100, 150 mm) |
Pressure Range | -0.1 to 0 MPa, 0 to 60 MPa |
Accuracy | ±1.0% FS, ±1.6% FS |
Material | Stainless Steel 304, Stainless Steel 316 |
Process Connection | 1/4", 1/2" BSP, NPT, G-thread |
Process Temperature | -40°C to +100°C |
RING | Stainless Steel 304, Stainless Steel 316 |
LENS | Glass, Safety Glass, Acrylic |
DIAL | Aluminum, Single or Dual Scale |
POINTER | Aluminum, Black Finish |
MOVEMENT | Stainless Steel 304 |
TUBE & SOCKET | Stainless Steel 304, Stainless Steel 316, Stainless Steel 316L |
Application Medium | Corrosive liquids, gases, steam |
Applications
1. Chemical and Petrochemical Industry
For monitoring pressure in corrosive chemical processes.
2. Food and Beverage Industry
Used in sanitary systems for pressure monitoring.
3. Pharmaceutical Industry
Ensures precise pressure readings in sterile conditions.
4. Water Treatment Plants
Monitors pressure in corrosive or contaminated water systems.
5. Oil and Gas Industry
Measures pressure in pipelines and storage tanks with challenging media.
Why Choose Our All Stainless Steel Diaphragm Pressure Gauge?
1. Durable Construction
Made entirely of stainless steel for enhanced corrosion resistance and long service life.
2. Wide Compatibility
Suitable for highly corrosive, viscous, or crystallizable media.
3. Accurate and Reliable
High-precision measurement ensures consistent performance even in extreme environments.
4. Customizable Design
Various connection sizes, dial configurations, and diaphragm materials available to meet your needs.
5. Comprehensive Quality Control
Each gauge undergoes rigorous testing to guarantee performance and durability.
Order Now and Elevate Your All Stainless Steel Diaphragm Pressure Gauge
Need assistance? Contact our experts for help selecting the perfect All Stainless Steel Diaphragm Pressure Gauge for your application.
