125 radial process industrial instruments 1, suitable for high dynamic pressure load and vibration load applications 2, for measuring the pressure of corrosive, non-viscous and non-crystalline gas and liquid media, also suitable for corrosive environment3 3, equipment manufacturing, chemical, petrochemical industry, power plants, mining, oil exploration platform and environmental protection technology machinery manufacturing and general equipment manufacturing

                                            125 radial process industrial instruments

1, suitable for high dynamic pressure load and vibration load applications

2, for measuring the pressure of corrosive, non-viscous and non-crystalline gas and liquid media, also suitable for corrosive environment3

3, equipment manufacturing, chemical, petrochemical industry, power plants, mining, oil exploration platform and environmental protection technology machinery manufacturing and general equipment manufacturing

Characteristic description

1, safe versions with robust release caps that meet ASME B40.100 requirements and test conditions

2, the shell can be filled or not filled with liquid suitable for high dynamic pressure load and vibration range: 0... 0.06 to 0... 100 mpa [0... 10psi to 0... 15,000 psi.

3, connection thread 1/4NPT, 1/2NPT,1/4BSP,1/2BSP,1/4BSPT, 1/2BSPT, M14*1.5, M20*1.5 and other threads.

4, size, 125mm 160mm diameter optional.

5, accuracy level, CL 1.0 and CL 0.5 two grades are optional.

6, the use of temperature, glycerin-20... +60 °C, filled with silicone oil and unfilled -40... +60 °C.

Seven,

Connector material 316L Bourdon tube material 316L

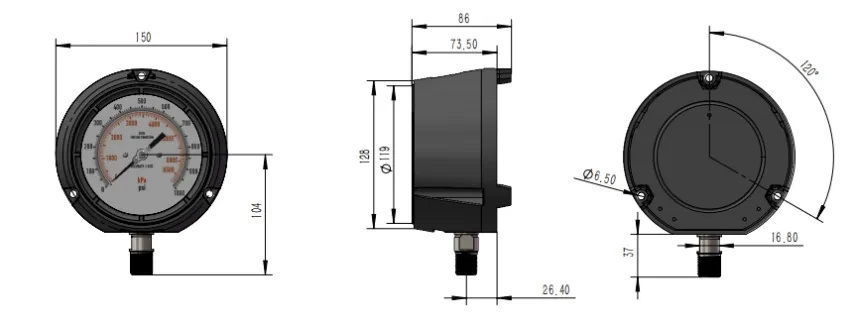

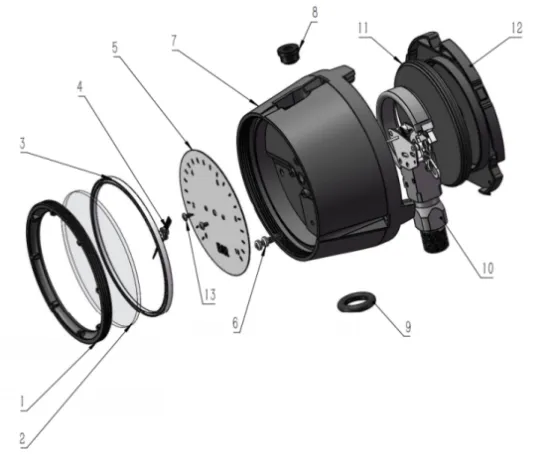

Part name

1, cover ring, screw in with thread.

2, mirror, laminated safety glass.

3, sealing ring, silicone sealing ring.

4, pointer, black aluminum adjustable pointer.

5, dial, aluminum white background black word dial.

6, fasteners, 304 stainless steel screws.

7, the case, black phenolic resin containing glass fiber material.

8, oil plug, black silicone material

9, O-ring, joint sealing ring silicone material.

10, Components, instrument transmission connection components, 316L material, movement 304 material.

11, explosion-proof pad, backplane explosion-proof pad, silicone material.

12, backplane, explosion-proof backplane, buckle type explosion-proof design, phenolic resin containing glass fiber material.

13, fasteners, fixed dial screws 304 material.

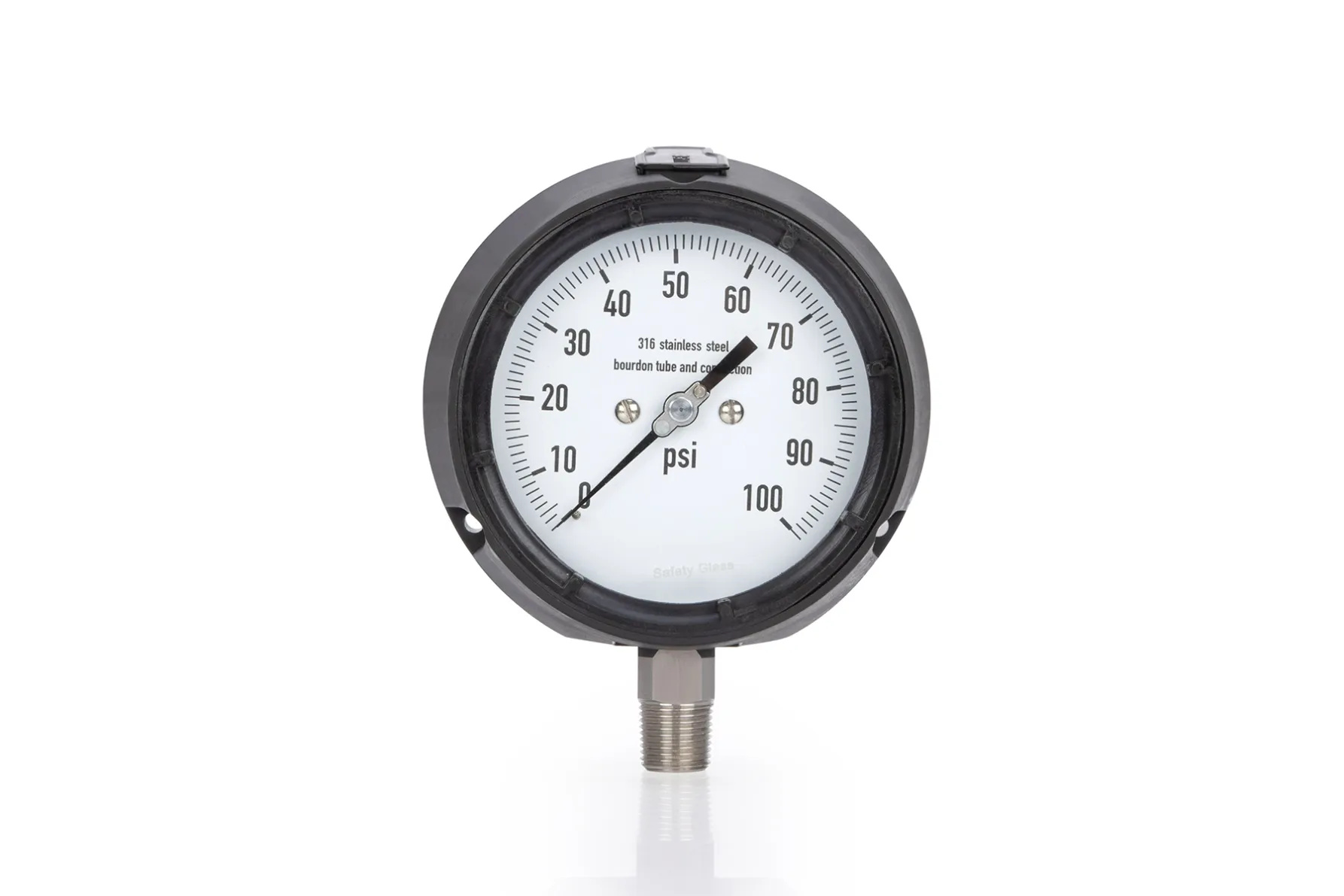

4.5″ Process Gauge

TIGERINST Model PLF45L Process Gauge is furnished in a solid-front, turret-style case, molded in hi-impact polypropylene, which is ideally suited for corrosive and difficult environments. The solid-front construction provides added protection for safety considerations and the lens is sealed for weather-proof operation. This gauge can be provided dry or liquid filled. CAUTION: A coil syphon must be installed on the connection when used on steam applications.

CASE:Fiberglass-reinforced black polypropylene

RING:Fiberglass-reinforced black polypropylene

LENS:Safety Glass Lens

DIAL:Aluminum, white finished with black markings

POINTER:Aluminum, black, micro-adjustable

MOVEMENT:Stainless steel, rotary type

TUBE&SOCKET:316 Stainless steel

CONNECTION:1/2”NPT bottom outlet, 1/4"NPT optional

ACCURACY:±0.5% Full Scale (ASME B40.100 Grade 2A)

PROCESS TEMPERATURE:0 to 140°F (-18 to 60°C)

AMBIENT TEMPERATURE:0 to 140°F (-18 to 60°C)

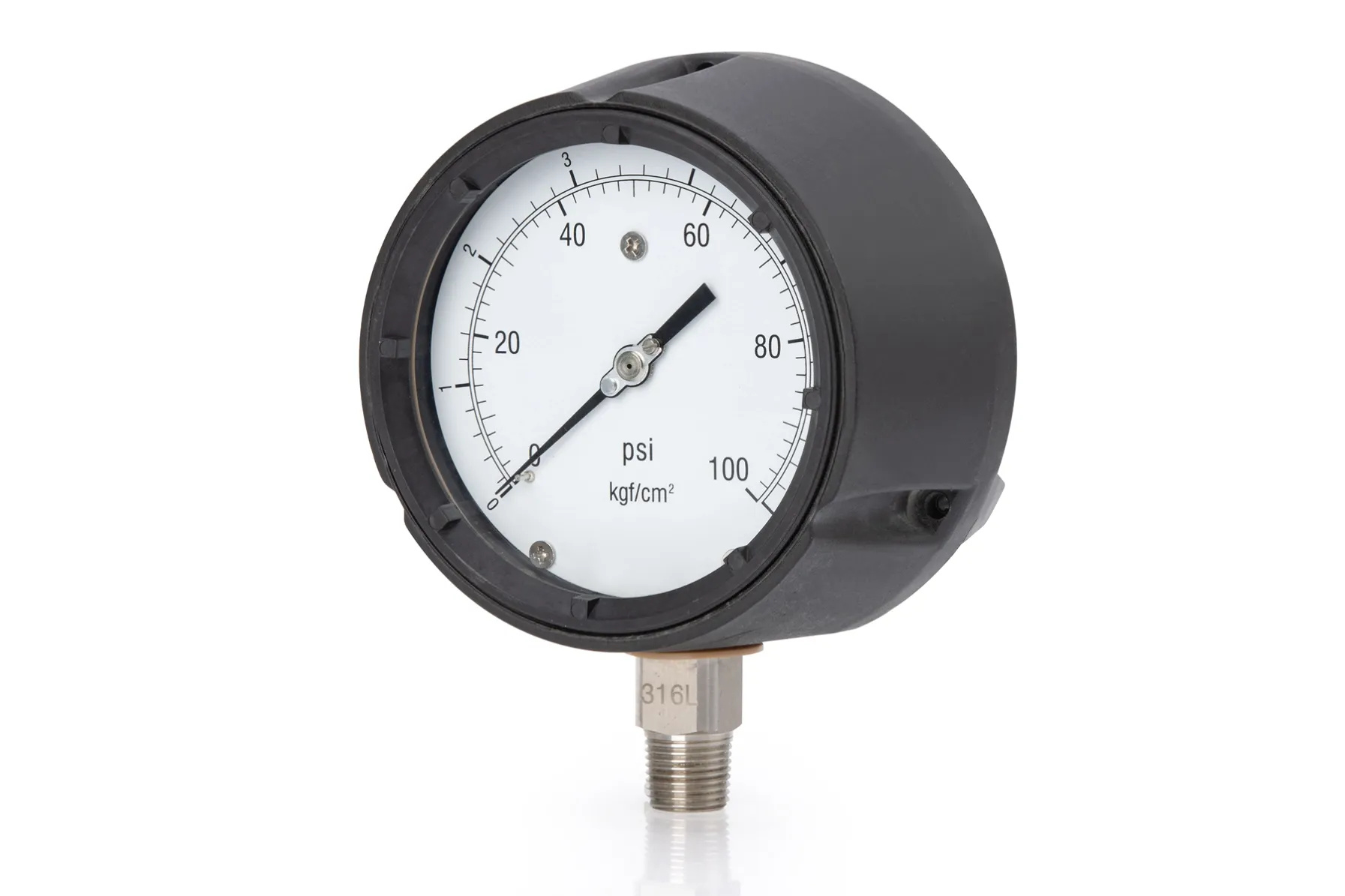

4.5″ Process Gauge

TIGERINST Model P45L Process Gauge is furnished in a solid-front, turret-style case, molded in hi-impact polypropylene, which is ideally suited for corrosive and difficult environments. The solid-front construction provides added protection for safety considerations and the lens is sealed for weather-proof operation. This gauge can be provided dry or liquid filled. CAUTION: A coil syphon must be installed on the connection when used on steam applications.

CASE:Fiberglass-reinforced black polypropylene

RING:Fiberglass-reinforced black polypropylene

LENS:Safety Glass Lens

DIAL:Aluminum, white finished with black markings

POINTER:Aluminum, black, micro-adjustable

MOVEMENT:Stainless steel, rotary type

TUBE&SOCKET:316 Stainless steel

CONNECTION:1/2”NPT bottom outlet, 1/4"NPT optional

ACCURACY:±0.5% Full Scale (ASME B40.100 Grade 2A)

PROCESS TEMPERATURE:-40 to 250°F (-40 to 120°C)

AMBIENT TEMPERATURE:-40 to 140°F (-40 to 60°C)
