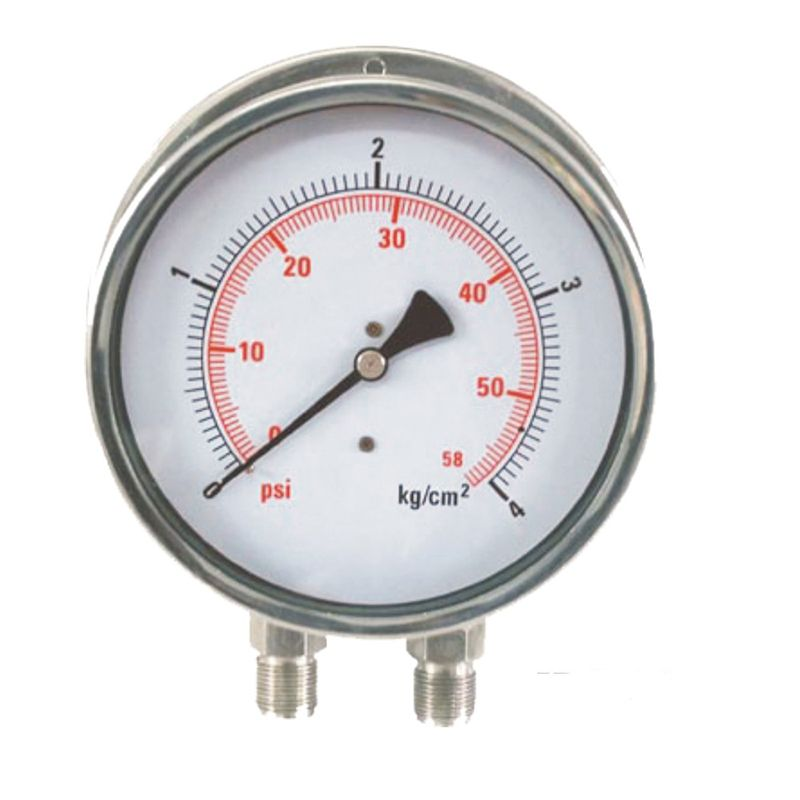

Stainless steel differential pressure gauge
Stainless steel differential pressure gauges are precision instruments designed to measure the pressure difference between two points in a system. These gauges are robust, corrosion-resistant, and suitable for a wide range of industrial and environmental applications. Their all-stainless-steel construction makes them ideal for harsh environments with demanding operational requirements.
Introduction
Stainless steel differential pressure gauges are precision instruments designed to measure the pressure difference between two points in a system. These gauges are robust, corrosion-resistant, and suitable for a wide range of industrial and environmental applications. Their all-stainless-steel construction makes them ideal for harsh environments with demanding operational requirements.
Types
1. Capsule Differential Pressure Gauge
2. Bellow-Type Differential Pressure Gauge
3. Piston-Type Differential Pressure Gauge
4. Magnetic Coupling Differential Pressure Gauge
Specifications
Parameter | Details |
Dial Size | 63mm (2.5”), 100mm (4”), 150mm (6”) |
Pressure Range | 0-16 mbar, 0-100 mbar, 0-6 bar, 0-16 bar, 0-40 bar |
Static Pressure | Up to 25 bar |
Case Material | Stainless Steel 304/316 |
Ring | Stainless Steel |
Lens | Tempered Glass or Polycarbonate |
Dial | Aluminum, white with black and red markings |
Pointer | Aluminum, black |
Movement | Stainless Steel 304 |
Tube & Socket | Stainless Steel 316L |
Accuracy | ±1.0% or ±1.6% of Full Scale |
Process Connection | G1/4, G1/2, NPT, BSP |
Process Temperature | -20°C to 80°C |
Application Medium | Liquid, Gas, Steam |
Applications
· Filter Monitoring: Measures the pressure drop across filters to indicate clogging or blockage.
· Pump and Compressor Monitoring: Ensures the efficient operation by tracking pressure differences.
· Hydraulic Systems: Tracks pressure differences in closed-loop systems.
· Process Control: Widely used in chemical, petrochemical, and pharmaceutical industries.
· Environmental Systems: Monitors pressure in air handling and cleanroom environments.
Why Choose Our Product?
1. Durability: Made entirely from stainless steel for maximum corrosion resistance and longevity.
2. Precision: High accuracy ensures reliable performance in critical applications.
3. Customizability: Available in multiple configurations to suit varied operational needs.
4. Cost-Effective: Competitively priced without compromising quality.
5. Versatility: Suitable for a wide range of media, including corrosive gases and liquids.
6. Robust Design: Resistant to vibration and shocks, making it ideal for industrial environments.
Get in Touch
Please contact us for more information or to request a quote tailored to your specific requirements.
