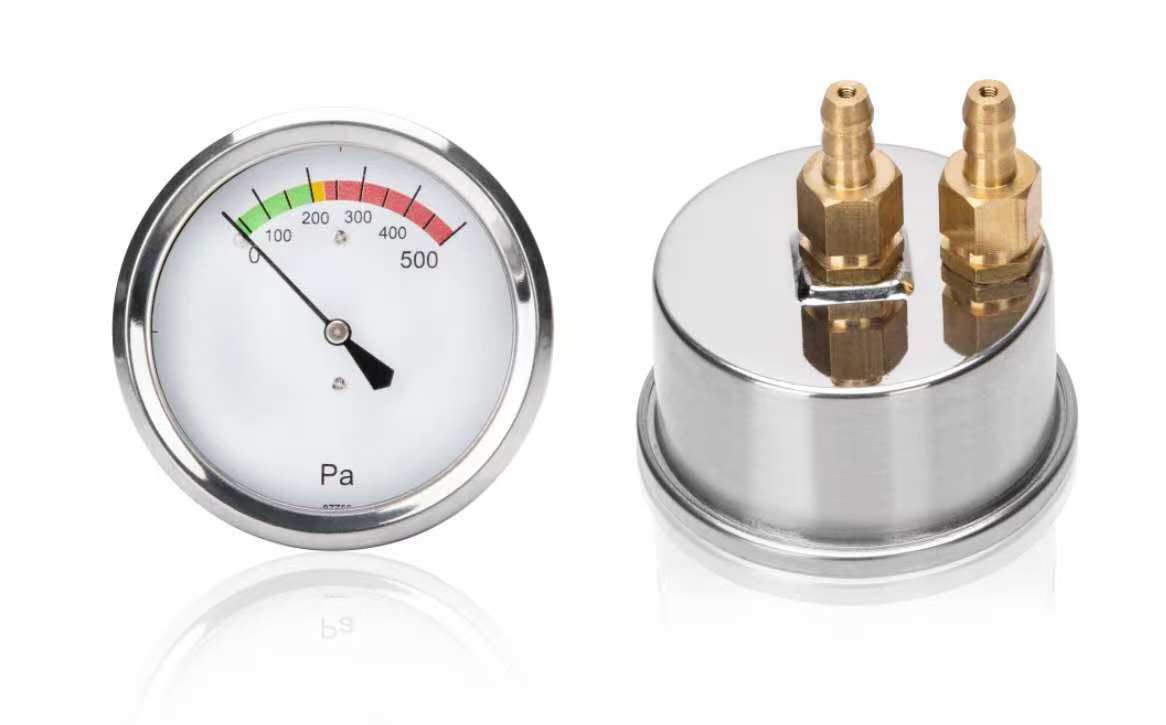

Duplex Low Pressure Gauge
The Duplex Low Pressure Gauge is designed to measure and display two separate pressure readings simultaneously within low-pressure systems. This innovative instrument provides accurate dual pressure monitoring, making it an ideal solution for systems requiring precise differential or independent pressure measurements. The gauge’s robust design and versatile functionality cater to a wide range of applications in HVAC, medical devices, and industrial processing.
Product Overview
The Duplex Low Pressure Gauge is designed to measure and display two separate pressure readings simultaneously within low-pressure systems. This innovative instrument provides accurate dual pressure monitoring, making it an ideal solution for systems requiring precise differential or independent pressure measurements. The gauge’s robust design and versatile functionality cater to a wide range of applications in HVAC, medical devices, and industrial processing.
Key Features
· Dual Scale Monitoring: Measures and displays two independent pressures on a single gauge.
· Wide Compatibility: Suitable for air, gases, and non-corrosive fluids.
· Robust Design: Made with high-quality materials to withstand demanding environments.
· Compact and Efficient: Reduces the need for multiple gauges, saving space and improving system efficiency.
· Custom Options: Available in various pressure ranges, dial sizes, and connection types.
Technical Specifications
Parameter | Description |
Material | Stainless Steel (304/316) for Body and Connections |
Pressure Range | 0–100 mbar to 0–5 bar |
Dial Size | 2.5" (63mm), 4" (100mm), 6" (150mm) |
Connection Type | Bottom or Back Mount (Threaded: NPT, BSP) |
Accuracy | ±2.5% of Full Scale |
Temperature Range | -20°C to +80°C |
Mounting Options | Panel Mount, Surface Mount |
Applications | Low-pressure air and gas systems |
Typical Applications
1.HVAC Systems: Used to monitor pressures in air ducts or ventilation systems, ensuring balanced airflow and efficient operation.
2.Medical Devices: Applied in oxygen therapy systems and vacuum-assisted medical equipment to maintain precise pressure control.
3.Industrial Processing: Essential for monitoring dual pressures in filtration systems, pneumatic systems, and gas distribution networks.
4.Environmental Monitoring: Suitable for low-pressure applications in laboratories or weather monitoring stations. Benefits · Enhanced Efficiency: Provides two readings on one instrument, reducing system complexity. · Cost-Effective Solution: Eliminates the need for multiple gauges, saving both space and cost. Durable Construction: Designed to perform reliably in challenging conditions. · Easy to Install: Versatile mounting options for seamless integration. Customization Options · Variety of dial sizes and pressure ranges. · Different mounting styles to suit specific application requirements. · Optional protective accessories such as rubber cases or splash guards. Contact Us For more information or to request a quote for Duplex Low Pressure Gauges, please contact us. Our team is ready to assist you in finding the perfect solution for your low-pressure monitoring needs.
